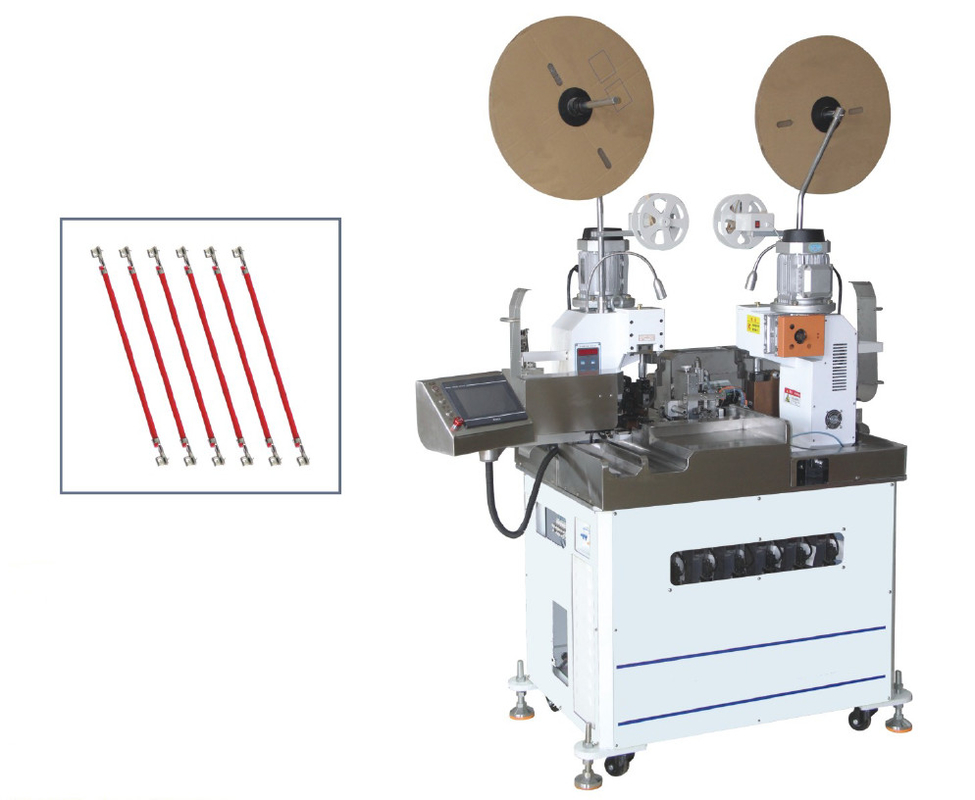

RS-01G Automatic Double-End Terminal Crimping Cutting And Stripping Wire Machine

Auto wire cutting stripping and double-end crimping machine

Intro:

This automatic wire cutting and stripping machine can cut wires, strip wires , twist and crimp two-ends. Cutting stripping and crimping can be finished with one machine. It can make 4300pcs/hour for 100MM length. Fast speed and high efficiency.

Suitable:

This wire cutting stripping and crimping machien is for 14 AWG to 32 AWG stranded electric wire. The terminal should be on tape and reel, both horizontal or vertial type are OK.

Specification:

Model: RS-01G fully automatic double-head terminal machine

Power supply: AC220V50/60HZ (single phase)

Function: wire cutting, single-end stripping, double-end stripping, single-end crimping, single-end twisting

Processable wire range: AWG#32-AWG#20

Cutting length: 30mm-9999mm

Cutting accuracy: Variation range: 1mm + 0.2% or less of cutting length

Peeling length: 01mm-9mm

Pressing capacity: 2.5 tons

Twisted wire length: AWG#32-AWG#20 (3mm-12mm)

Air pressure: 5-6.5kgf (need to use clean and dry air)

Detection device: presence or absence of wires, abnormalities in various parts of the motor

Mechanical dimensions: length 1060×width 800×height 1330 (mm) excluding protrusions

Weight: about 350kg

Feature:

Crimp samples

Machine video:
