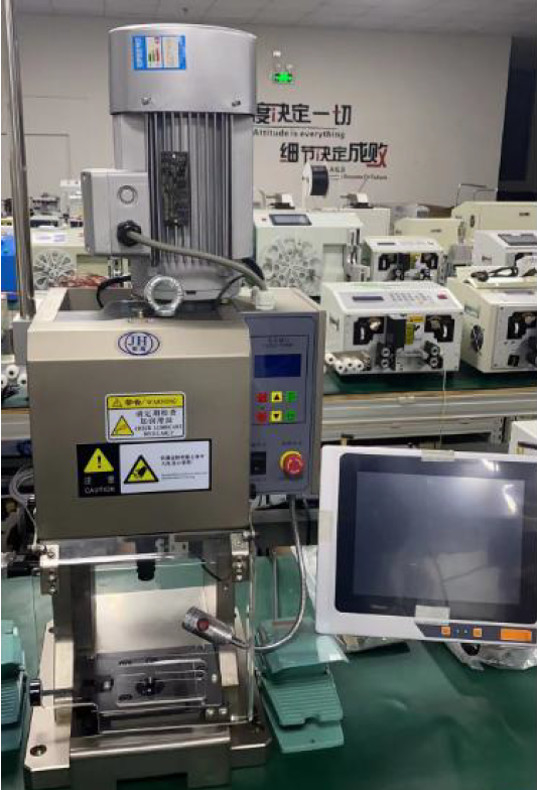

RS-4TS-MS Sevo Motor Terminal Crimp machine

RS-4TS-MS Sevo Motor Terminal Crimp machine

1. Machine features:

1. The closing height is continuously adjustable with an accuracy of up to 0.03MM;

2. It can match various molds and is easy and quick to replace;

3. The transmission structure is simple and the operation is stable and reliable;

4. It only works at the moment of crimping to save energy;

5. Low noise design, suitable for homework;

6. Modify the parameters to adjust the riveting height without adjusting the hardware;

7. A formula database can be established according to the product, and the material number switching is convenient and fast;

8. Past crimping data can be stored to achieve quality management tracking;

9. It can be connected to the local area network to connect to the EMS system.

10. Unique overload protection function to ensure safe operation.

2. Machine parameters:

Model:RS-4TS-MS

Power supply: AC220V 55HZ

Power: 1.5KW

Crimping force: 40KN (4T)

Machine travel: 30MM

Lifting range: ±2MM

Machine appearance: L360*W700*H840MM

Machine weight: 130KG
